Multicolor 3D Printer with Automatic FDM for Outdoor Logo Advertising Core Motor Gear Extruder Components Supports PLA Material









Key attributes

Industry-specific attributes

production capacity

1000sets/Month

supporting material

PETG, PLA

Other attributes

place of origin

Guangdong, China

brand name

LOLY 3D

application

Advertising

features

Multi-axis, Heated Bed, dual extruder, Resume Printing, Filament Detection, auto leveling

warranty

1 Year

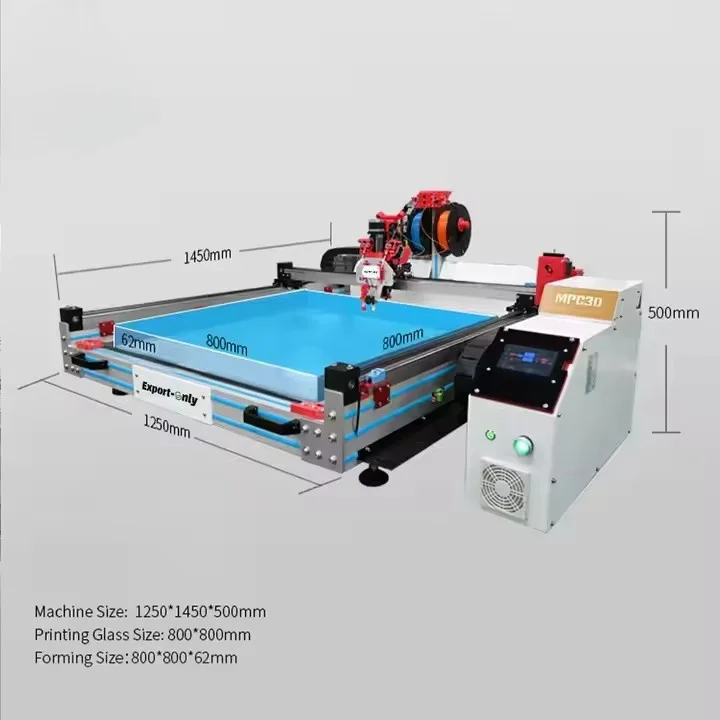

dimension(l*w*h)

1450*1250*500mm

voltage

220V

usage

Label Printer, Other

weight

automatic grade

Automatic

color & page

Multicolor

condition

New

Plate Type

Flatbed

Connector Type

SD Card

Print speed

130-150mm/s

Operation System

Windows,Lunis,MAC

Packaging and delivery

Selling Units:

Single item

Single package size:

140X130X80 cm

Single gross weight:

150.000 kg

Overview

Product Description

Our Advantage

1.High Precision Printing

Achieves exceptional detail in both small and large formats, ensuring high-quality results for intricate designs.

2.Fast Printing Speed

Designed to handle high-volume production, significantly reducing turnaround times and increasing efficiency.

3.Versatile Material Compatibility

Supports a wide range of materials, including various types of inks, papers, and films, enabling versatile applications.

4.User-Friendly Interface

Simplifies operation with an intuitive software interface, allowing for easy setup and minimal training for operators.

5.Low Maintenance

Features easy-to-clean components and durable design, reducing downtime and maintenance costs.

6.Cost-Effective Production

Efficient use of materials and reduced energy consumption lowers overall operational costs.

7.Advanced Color Management

Offers superior color accuracy and consistency, ensuring vibrant and true-to-life prints.

8.Scalability and Flexibility

Easily adaptable to different production needs, with the ability to scale operations or switch between different types of jobs quickly.

Parameter

Model	MX 60 MX 80 MX 120
Printing Size	12501050600mm 14501250600mm 16901540600mm
Glass Printing Size	61061062mm 80080062mm 12101210100mm
Average Power Consumption	0.25KW/H 0.3KW/H 0.75KW/H
Printhead Number	1pcs
Nozzle size	0.6mm
Layer Resolution	100um
Positioning Curvature	Bend ≤0.03/300mm Straightness ≤0.03/300mm
Printing Media	PLA,PLMA,PETG
Material Size	Ф1.75 MM
Power Requirements	AC100-220V
Average Power Consumption	0.25KW/H 0.3KW/H 0.75KW/H
Software	CDR,MPC 3D,Slicing Software
Computer System	WIN 7/ WIN 10 64bit
Supported File Types	SVG,STL
Speed	Printing speed: 60mm-100mm/s Running speed: 700mm/s
Screem size	4.3 inch 7.0 inch（Optional）

Details Images

1.Auto Leveling

The leveling data is automatically generated and saved, so you’ll never have to level again.

The leveled platform ensures consistent precision for the best possible print results every time.

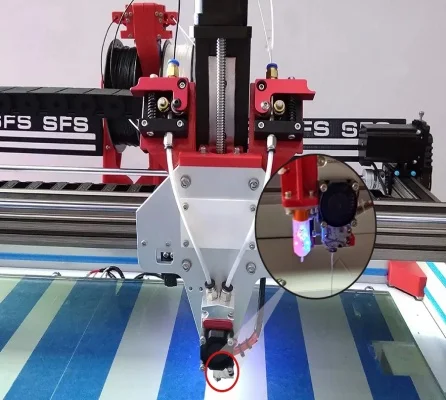

2.Two-Color Printing with Automatic Color Switching

Effortlessly switch between two colors as programmed in your design file, all controlled seamlessly by the software.

3.High-Quality Motion Card with Free Upgrades

Developed with independent research, our motion card adopts advanced ARM 32-bit high-frequency mainboard chips.

This ensures greater stability, longer lifespan, and free upgrades to keep your system up to date.

4.Software & Control Panel

1.Custom Slicing Software: Supports CDR, Illustrator, CNC formats, with free upgrades. 2.Multilingual: Chinese, English, Russian,
Spanish, French, and Italian supported.

3.Smart Calculations: Automatically calculates filament usage and printing time.

4.Real-Time Display: Shows the printing process live.

Products Display
